Fuel sender unit and mounting parts for the VW Type 3 – detailed overview

The category fuel sender unit and mounting parts for the VW Type 3 includes all components responsible for measuring, transmitting, and displaying the fuel level in the vehicle. This system ensures that the driver always has a reliable indication of how much fuel remains in the tank.

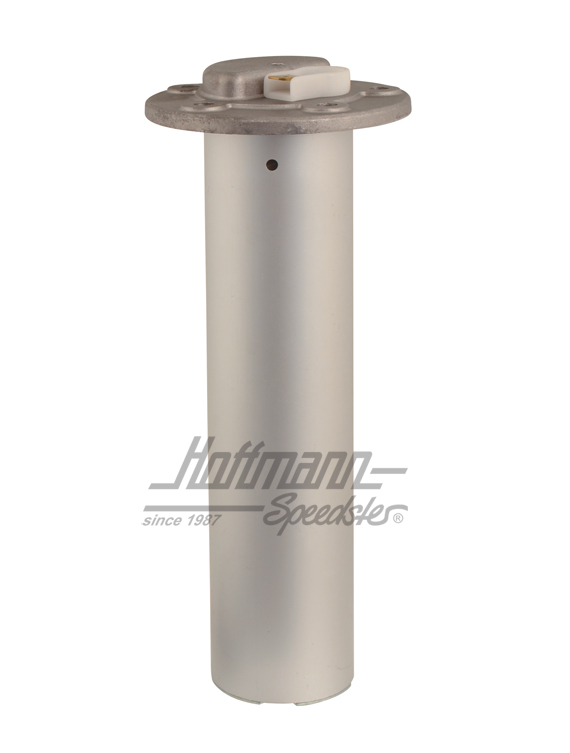

The fuel sender unit is the central component, converting the fuel level inside the tank into an electrical signal that is displayed on the dashboard fuel gauge.

Structure of a complete fuel level system

A fully functioning system consists of several coordinated parts:

1. Fuel sender unit (tank sensor)

• float-type or tube-style sender unit

• measures the fuel level inside the tank

• converts mechanical movement into electrical resistance values

• operates via a float that rises and falls with fuel level

The sender is the key measuring component and directly determines the accuracy of the fuel gauge.

2. Seals

• gasket between sender and fuel tank

• prevents fuel leakage and vapor escape

• usually made of fuel-resistant cork or rubber

• ensures a tight and safe seal at the tank opening

3. Mounting and hardware components

• retaining screws and locking rings

• mounting flanges or plates

• installation kits for proper assembly

• securing clips or brackets (depending on version)

These parts ensure stable and leak-free installation of the sender unit.

4. Electrical connections

• terminal connectors or spade terminals

• grounding connection to the vehicle body

• wiring to the dashboard fuel gauge

• repair connectors or harness extensions

Clean electrical contact is essential for accurate readings.

5. Additional components (depending on configuration)

• voltage stabilizer for gauge accuracy

• signal filtering elements

• dashboard fuel gauge

• wiring harness integration components

These improve stability and accuracy of the fuel level indication.

Function of the fuel sender unit in the VW Type 3

The fuel sender performs a simple but essential function:

• measures the current fuel level in the tank

• converts float position into electrical resistance values

• sends these signals to the dashboard fuel gauge

• provides continuous fuel level feedback while driving

As fuel level changes, the float moves, adjusting electrical resistance and updating the gauge accordingly.

Typical operating principle

The system works with variable resistance:

• full tank → low resistance

• half tank → medium resistance

• empty tank → high resistance

This simple analog system is typical for classic Volkswagen vehicles and is known for its durability.

Why fuel senders and components wear out

Common age-related issues include:

• stuck or damaged float mechanisms

• corrosion inside the tank

• worn electrical contacts

• hardened or leaking seals

• inaccurate resistance readings

• broken wiring or grounding issues

These problems often result in fluctuating or incorrect fuel readings.

Importance in restoration

During VW Type 3 restoration, these components are often replaced because:

• the fuel gauge becomes unreliable

• fuel leaks can pose safety risks

• corrosion affects electrical accuracy

• old seals are no longer fuel-resistant

A new sender unit restores both accuracy and operational safety.

Original vs. reproduction parts

• Original parts: authentic but often aged or inaccurate

• Reproduction parts: newly manufactured, more reliable, and typically more precise

For regular driving use, high-quality reproductions are commonly preferred.

Conclusion – a small part with major importance

The fuel sender unit and mounting components of the VW Type 3 are small but essential elements of the vehicle. They ensure that the driver always has a reliable indication of fuel level, improving both convenience and operational safety.

A properly functioning fuel level system significantly enhances the usability and reliability of this classic Volkswagen.
