Sunroof parts for the Bus

Sliding roof parts for the VW Bus T2 – restoring the mechanism, guides and sealing

Sliding roof parts perform different tasks on the VW Bus T2 relating to opening, guiding, operating and sealing the sliding roof. The category includes sliding roof cranks, drive components, guide rails, left and right cables, brackets, clips, screws and a sliding roof seal. Smaller components such as springs, spring plates, trim rings and handle shells are also included. On an older sliding roof, several components can contribute when the roof becomes difficult to operate or individual parts are damaged or incomplete. Before carrying out a repair, it is therefore important to determine exactly which area of the sliding roof system is affected and which existing components can continue to be used.

Why are intact sliding roof parts important on the VW Bus T2?

The various sliding roof parts work together within a connected mechanical system. The crank, drive and cables transmit the movement of the sliding roof, while the guide rails and associated brackets support its intended path of travel. Clips, screws and other small components secure individual parts in their correct positions. The sliding roof seal additionally forms the transition between the sliding panel and the surrounding roof area. Wear or damage to a single part can therefore affect the function of other components. During repairs, it is advisable not to look only at the immediately obvious part but also to inspect the adjacent mechanism, guides and mounting components.

When should I inspect or replace sliding roof parts on my VW Bus T2?

An inspection is advisable if the sliding roof becomes difficult to move, the crank develops excessive play, movement becomes uneven or parts of the guides or mounting system are visibly damaged. Damaged sliding roof seals, worn handle and crank components or suspicious cables should also be examined more closely. Before replacing individual components, it should first be determined whether the problem actually originates from that part or whether several elements of the system are affected. Particularly on sliding roofs that have previously been repaired, a complete assessment is worthwhile. This allows missing or worn small parts to be identified before the mechanism is fully reassembled and adjusted.

How are sliding roof parts inspected and installed on the VW Bus T2?

When working on sliding roof parts, a systematic inspection is useful because the drive, guides and mounting components operate directly together. Before installing new parts, the existing components and their positions should be checked carefully.

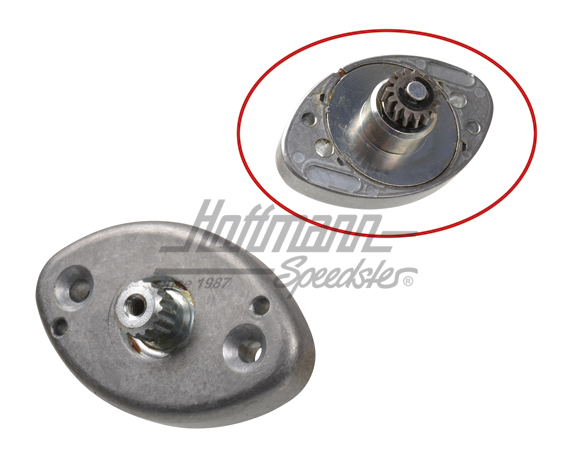

• Inspect the drive and sliding roof crank: Check the crank, drive, drive gear, spring and associated mounting parts for wear, damage and complete assembly.

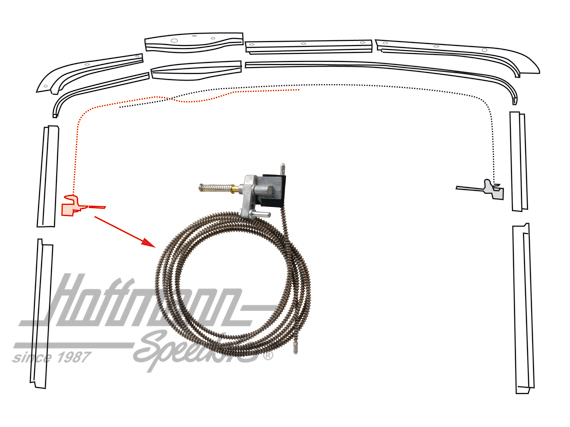

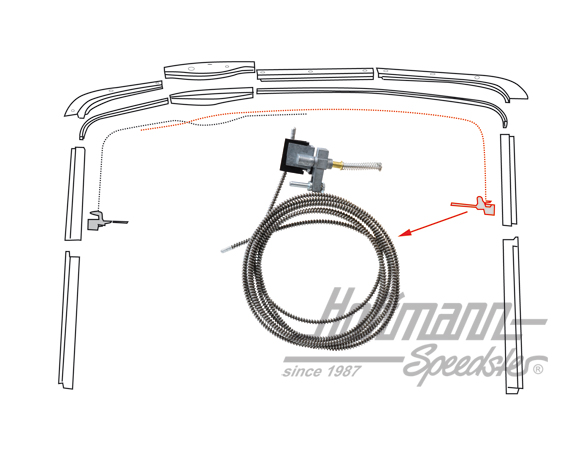

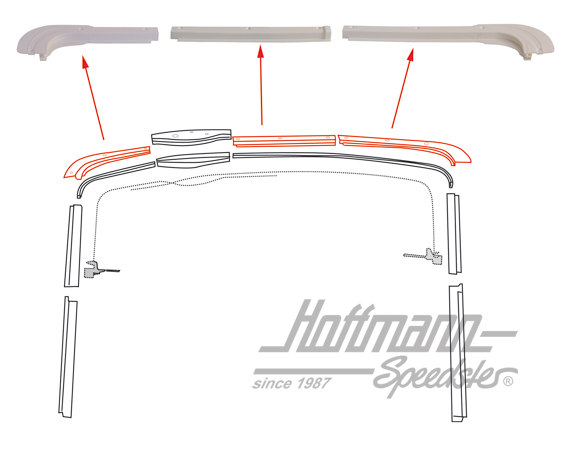

• Check guide rails and cables: Inspect the left and right cables together with the guide rails, brackets and cable guide so that the complete movement mechanism can be assessed.
• Identify small components correctly: Sort clips, screws, spring plates, trim rings and handle shells according to their intended positions and replace damaged parts before reassembly.
• Check the seal and operation afterwards: Inspect the sliding roof seal for visible damage and, after assembly, test whether the roof moves evenly without unusual resistance.

Careful identification of the individual components makes reassembly easier and prevents small fastening or guide parts from only being noticed as missing after the installation has been completed.

Which sliding roof parts fit my VW Bus T2?

When selecting suitable sliding roof parts, the first consideration is which section of the system needs to be repaired. The category includes a sliding roof drive, a drive gear for the steel sliding roof, a guide rail set, left and right sliding roof cables, repair kits for the sliding roof crank as well as cranks and related handle, trim-ring and backing components. Brackets, clips, screws and a sliding roof seal are also listed. Some components differ according to side, colour or version. Before selection, the existing sliding roof system, installation position and component actually required should therefore be compared carefully so that the replacement part matches the existing mechanism of the VW Bus T2.
