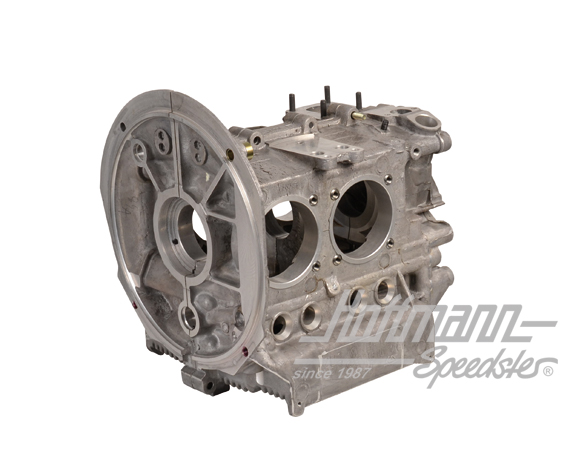

Crank case, standard, 1.3-1.6, Aluminum
€1,450.00*
Available, delivery time: 1-3 days
Product number:
010-0003-01
Weight:
20 kg
Original part number:
043 101 025 ALU
Product information "Crank case, standard, 1.3-1.6, Aluminum "
Crank case for 2 oil pressure control
pistons
(dual) and camshaft opening with
groove (for
metal plug 010-1014-01)
Beetle, Karmann Ghia 1.3-1.6
8.69-
Type 181 (Thing) 1.5-1.6
8.69-12.79
Bus T2 1.6
8.69-7.79
Type 3 1.5-1.6 4.61-
7.73
Housing bore ø 90
mm
Oil ducts (oil cooler / oil pump) ø 10
mm
Stud cylinder head ø 8
mm
Oil strainer attachment ø
16.5mm
Material: Aluminium

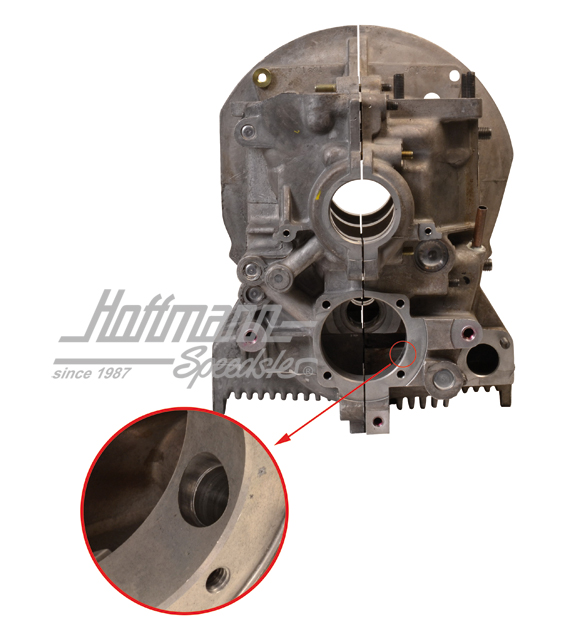

This housing is already reinforced at
the
factory behind the third cylinder to
prevent
cracking of the main bearing seat.
pistons
(dual) and camshaft opening with
groove (for
metal plug 010-1014-01)
Beetle, Karmann Ghia 1.3-1.6
8.69-
Type 181 (Thing) 1.5-1.6
8.69-12.79
Bus T2 1.6
8.69-7.79
Type 3 1.5-1.6 4.61-
7.73
Housing bore ø 90
mm
Oil ducts (oil cooler / oil pump) ø 10
mm
Stud cylinder head ø 8
mm
Oil strainer attachment ø
16.5mm
Material: Aluminium
This housing is already reinforced at
the
factory behind the third cylinder to
prevent
cracking of the main bearing seat.
