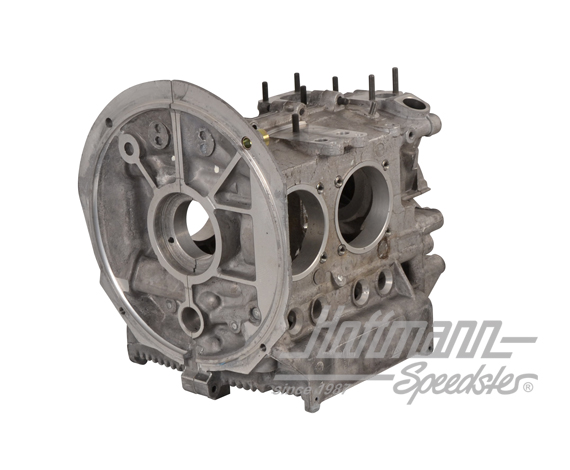

Crank case, standard, 1.2-1.5
€890.00*
Available, delivery time: 1-3 days
Product number:
010-0003-03
Weight:
12 kg
Original part number:
043 101 101 A
Product information "Crank case, standard, 1.2-1.5 "

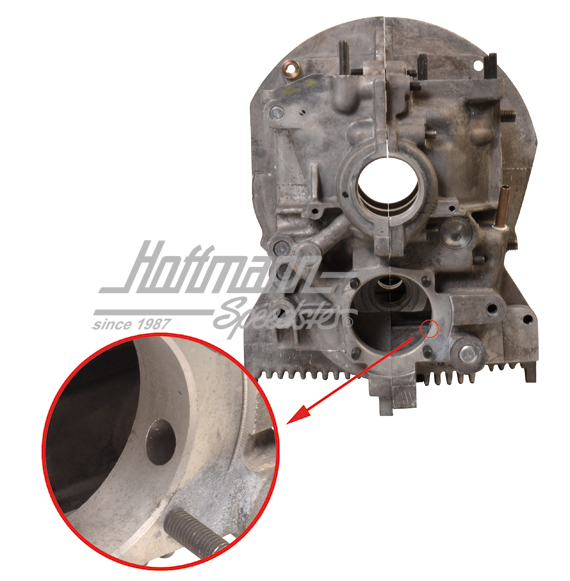

Crank case for 1 oil pressure control
piston
(single) and camshaft opening without
groove
(for plastic plug 010-1014)
for 25KW/34HP
Beetle, Karmann Ghia 1.2 8.70-7.7
for 29KW/40HP
Beetle, Karmann Ghia 1.3 8.65-7.69
for 32KW/44HP
Beetle, Karmann Ghia 1.5 8.66-7.69
Housing bore ø
90mm
Oil ducts (oil cooler / oil pump) ø
8mm
Stud cylinder head ø
8mm
Oil strainer attachment ø
14mm
The cast consists of more stable AS 41
alloy
(4% aluminum, 1% silicium).
piston
(single) and camshaft opening without
groove
(for plastic plug 010-1014)
for 25KW/34HP
Beetle, Karmann Ghia 1.2 8.70-7.7
for 29KW/40HP
Beetle, Karmann Ghia 1.3 8.65-7.69
for 32KW/44HP
Beetle, Karmann Ghia 1.5 8.66-7.69
Housing bore ø
90mm
Oil ducts (oil cooler / oil pump) ø
8mm
Stud cylinder head ø
8mm
Oil strainer attachment ø
14mm
The cast consists of more stable AS 41
alloy
(4% aluminum, 1% silicium).
